Bubblefoil® Roof Insulations

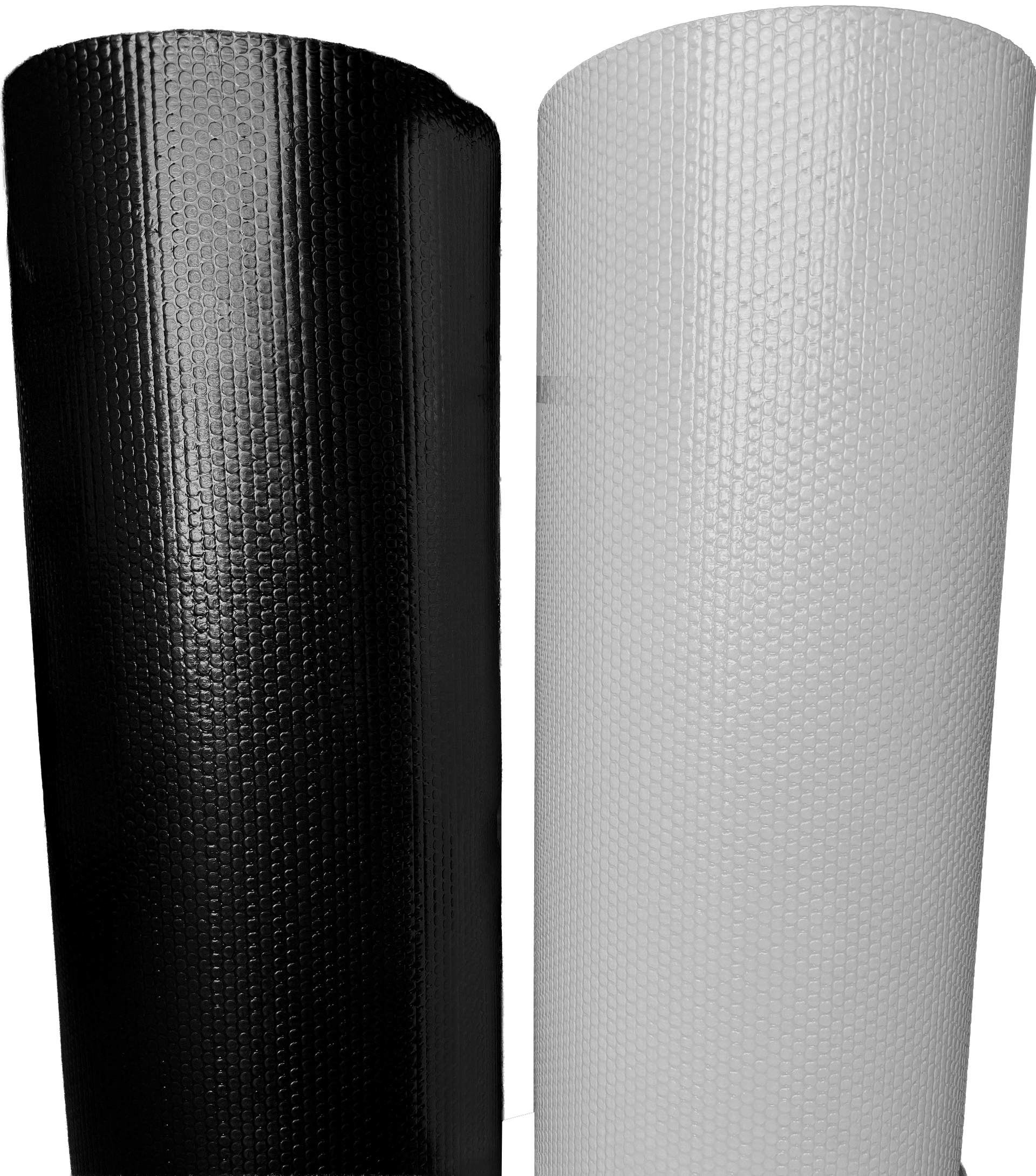

Alucushion®/Bubblefoil® FR is manufactured by a continuous lamination process of LDPE and foil with sealed bubbles of air between the two outer laminates. The thousands of individually celled air bubbles created during the manufacturing process, form a column of immobilised dry air, effectively countering heat loss through convection and conduction. Available in White or Black single-sided Foil, Double-sided Foil and White Single sided Domestic Grade.

Product Description

  • Strong, light and flexible with excellent tear resistance.
  • Heat stabilized for durability and effective in a temperature range from -20C° to 80°C.
  • Non-toxic, inert and vermin proof.
  • Dustproof - no membrane necessary under roof tiles or sheeting.
  • Aesthetically pleasing finish with good light reflectance.
  • No fibres and easy to install, no safety equipment required during installation.
  • Low emissivity and high reflectivity making it an ideal thermal radiant barrier.

Product Features

Product Technical Data

Appearance: White / Black / Foil Bubble

Emissivity of foil surface: <0.05

Roll length: 40m

Roll width: 1250mm

Roll size: 50m²

Effective coverage: 46m²

Overlap: 100mm

Wire Centres: 383mm

Mass per unit area: +-240gsm

Roll Weight: +- 12kg

Thermal Resistance (R-Value): 0.97-1.52 m² K/w (including air gaps)

Fire Rating SANS 10177 Part 11: B/B1/2 H only(SP & USP)

Architectural Specification

4mm Alucushion®/Bubblefoil® FR White single-sided 2906 / Double-sided Foil 1983 / Black single-sided 5050 roof insulation laid taut over purlins and fixed concurrent with roof covering, overlapped longitudinally by 100mm, on and including white / black pvc coated / galvanised straining wire spaced at 383mm centres, all in strict accordance with the manufacturers specifications. Alucushion Thermal Insulation (Pty) Ltd.
