White Heavy Industrial Grade

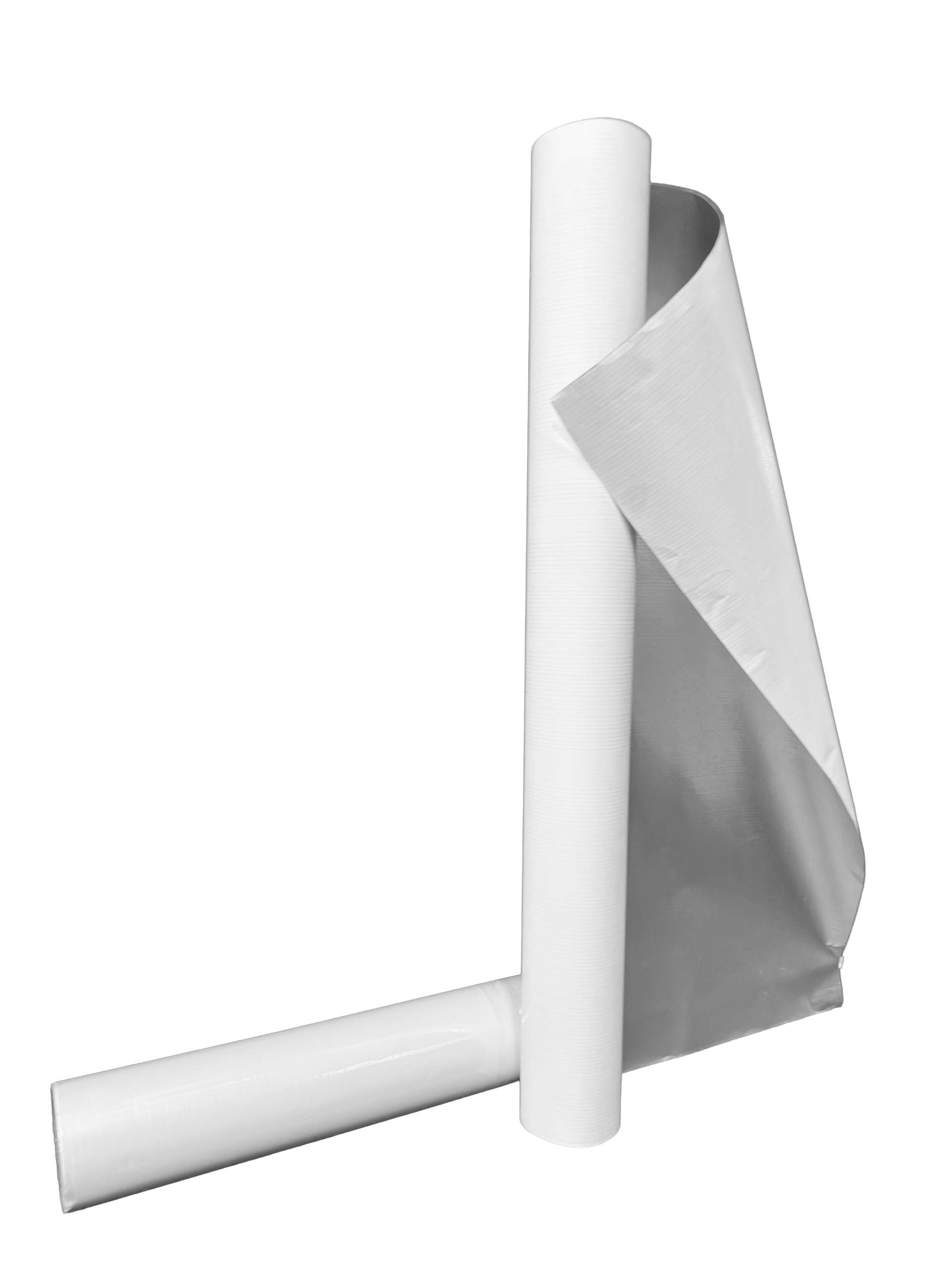

Alufoil®FR White Heavy Industrial Grade consists of a multi-layered fibreglass scrim reinforced aluminium foil laminate roof insulation. Incorporating highly advanced fire retardant properties with aluminium foil to reverse and white facing to exposed side, Alufoil®FR is ideal for use in Industrial, Commercial and Residential buildings.

Product Description

  • Heavy Duty with excellent rigidity compared to woven matt foil laminates.
  • Highly thermally efficient complying to SANS 10400XA.
  • Highest Fire Rating for multi-layered aluminium foil roof insulation products.
  • Highest pace-to-area ratio installation methodology saving time and costs.
  • Environmentally Friendly.
  • Acts as a dust barrier.
  • Improved interior lighting due to the white finish.
  • Non-hygroscopic and will not promote fungi, mould or bacteria nor sustain vermin.
  • Maintenance free and will not readily age providing long term product life.

Product Features

Product Technical Data

Appearance: White / Foil

Emissivity of foil surface: <0.05

Roll length: 40m

Roll width: 1200mm

Roll size: 48m²

Effective coverage: 44m²

Overlap: 100mm

Wire Centres: 367mm

Mass per unit area: 251gsm

Roll Weight: +- 12kg

Tensile strength MD: 255 N/25mm

Tensile Strength XD: 160 N/25mm

Thermal Resistance (R-Value): 1.19 m² K/w (including air gaps)

Fire Rating SANS 10177 Part 5 & 10: A/A1/1 H&V (SP & USP)

Reaction to Fire Classification SANS 53501-1: B-s1,d0*


*Test reports available upon request

Architectural Specification

Alufoil®FR White Heavy Industrial Grade Thermal

Barrier Roof Insulation laid over-purlin below the roof sheet on and including 1.6mm white PVC coated straining wire at 367mm centres with all overlaps at minimum 100mm including all cutting and waste strictly according to the manufacturers specifications.
